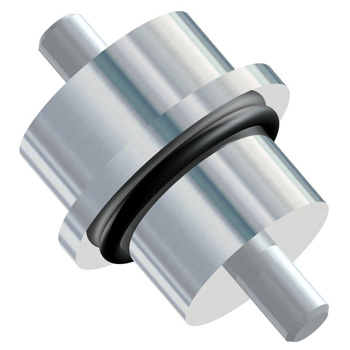

The SS-188-SLES vacuum rotary feedthrough features a Solid shaft with Mini Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

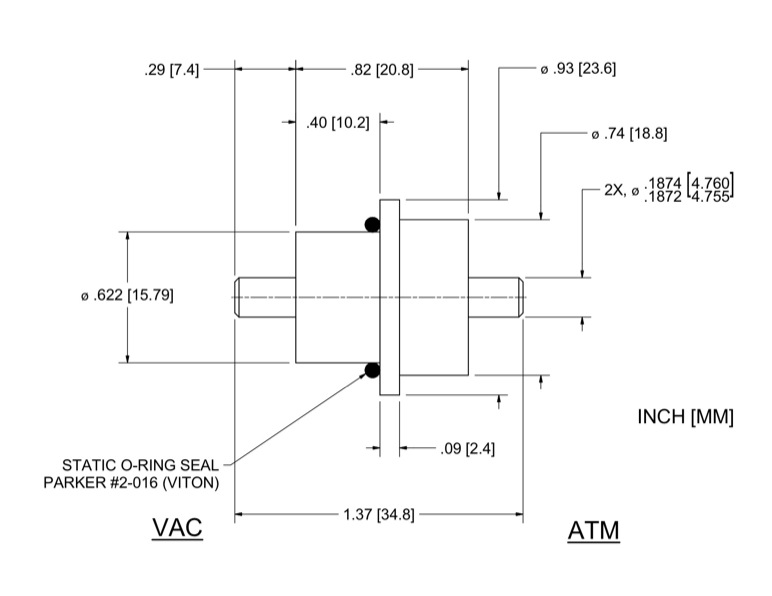

Ferrotec Part Number 103073 Dimension Specification Drawing
Specifications for Ferrotec Part Number 103073
| Shaft | Solid Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Mini Flange |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 0.1874 in |
| Shaft extension (Vac) | 0.289 in |
| Overall length | 1.37 in |
| Housing overall length | 0.82 in |
| Housing diameter | 0.74 in |
| Body length | 0.328 in |
| Recommended mounting bore | 0.625 |
| Flange diameter | 0.93 in |
| Flange thickness | 0.093 in |
| Flange Type | Mini Flange |
| Face seal O-ring | 2-016 |
