Rigaku 10C-8927-A water cooled FD-F1-HS- 0500-W-C hollow shaft vacuum ferrofluid feedthrough
| Nominal ID | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 |
| Recommended | 0.501/0.498 | 1.001/0.998 | 1.501/1.498 | 2.001/1.998 | 3.001/2.998 |
| Product No. | 10C-8927-A | 10C-8927-B | 10C-8927-C | 10C-8927-D | 10C-8927-E |
| Model |
FD-F1-HS- 0500-W-C |
FD-F1-HS- 1000-W-C |
FD-F1-HS- 1500-W-C |
FD-F1-HS- 2000-W-C |
FD-F1-HS- 3000-W-C |
| Max RPM | 6000 | 4500 | 3000 | 2500 | 1800 |
|

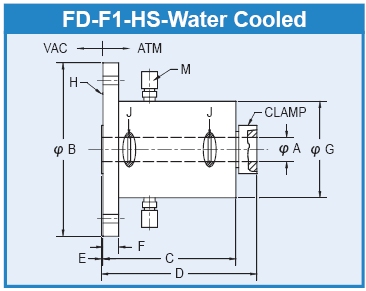

A (inch) B (inch) (hole pattern) |
0.502/0.503 6.00 (4) x 0.75 dia on 4.750 B.C. |
1.002/1.003 7.00 (4) x 0.75 dia on 5.500 B.C. |
1.502/1.503 7.00 (4) x 0.75 dia on 5.500 B.C. |
2.002/2.003 7.00 (4) x 0.75 dia on 5.500 B.C. |
3.002/3.003 10.000 (8) x 0.87 dia on 8.500 B.C. |
|
C (inch) D (inch) E (inch) F (inch) G (inch) |
2.75 3.215 0.03 0.38 2.75 |
2.75 3.339 0.03 0.38 3.00 |
3.00 3.65 0.03 0.38 3.75 |
3.25 3.966 0.03 0.38 4.18 |
3.87 4.717 0.03 0.62 5.87 |
|
H (O-ring) J (O-ring) |
2-238 2-014 |
2-244 2-022 |
2-244 2-029 |
2-244 2-033 |
2-262 2-151 |
| M (2 places) | Fitting for 0.25" OD tube | ||||
|
FFC Part No. FFC model no. |
50A-105395 SC-500-FWC |
50A-105396 SC-1000-FWC |
50A-103354 SC-1500-FWC |
50A-103921 SC-2000-FWC |
50A-105397 SC-3000-FWC |
