Rigaku RMS-CF-06-LC SuperseaL 10C-26101400 flange solid shaft rotary vacuum feedthrough
|
Product number |
10C-26101400 |
10C-26101402 |
|
Model |

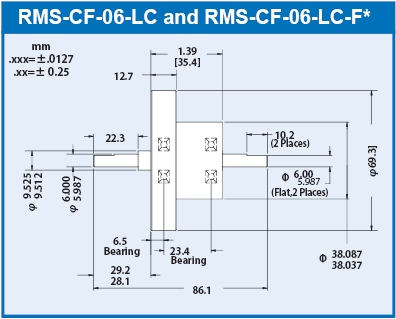

RMS-CF-06-LC |
RMS-CF-06-LC-F |
|
Transmission torque (N-m) |
5.65 |
5.65 |
|
Drag torque (N-m), break-away |
0.78 |
0.141 |
|
Drag torque (N-m) |
0.042 / 0.064 |
0.155 / 0.198 |
|
Flange |
2.75" |
2.75" CF |
|
Bolt hole dia. |
6@6.73 dia. |
6@6.73 dia. |
|
Bolt circle dia. |
58.72 dia. |
58.72 dia |
|
Maximum no-load RPM |
5000 |
2500 |
|
Ferrofluid type |
A300S |
F-310 |
|
Bearing type |
R6 |
R6 |
|
Bearing static load, max (N) |
1357 |
1357 |
|
Bearing dynamic load (N) |
2558 |
2558 |
