> Water Cooling Feedthrough

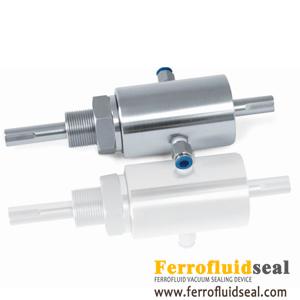

Shaft Ferrofluid Feedthrough with Water Cooling
- Vacuum Degree :10 e-6 Pa
- Leakage Rate :10 e-12 Pa·m3·s-1
- solid shaft,thread mounting
- with water cooling ports
- Product description: Compact mini solid shaft ferrofluid feedthrough with integrated water cooling for high-temperature industrial vacuum applications. Features vacuum capability of 10e-6 Pa and leakage rate of 10e-12 Pa·
Product introduction
Solid Axle(shaft) Non Flange Ferrofluid Feedthrough with Water Cooling
|
Main Specifications: |
|
|
Vacuum Degree : |
10-6 Pa |
|
Leakage Rate : |
10-12 Pa·m3·s-1 |
|
Pressure Resistance : |
0.5 MPa (5bar),3Mpa max |
|
Temperature Range : |
0-80℃ |
|
Sealing Material : |
Non-active Gas |
|
Shell Material : |
Non-Magnetic Permeability Stainless Steel |
|
Axle(Bush) Material : |
Magnetic Permeability Stainless Steel |
|
Shell Material |
Stainless steel or Aluminum |
|
Water Cooling : |
With |
Axle(Shaft) diameter size can be customized made from 10mm to 100mm
We will design the feedthrough as per your mounting sizes and performance requirements.
