Ferrotec part number 107424 Ferrofluidic seal Feedthrough Model HS-1500-CFFBWP
The HS-1500-CFFBWP vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

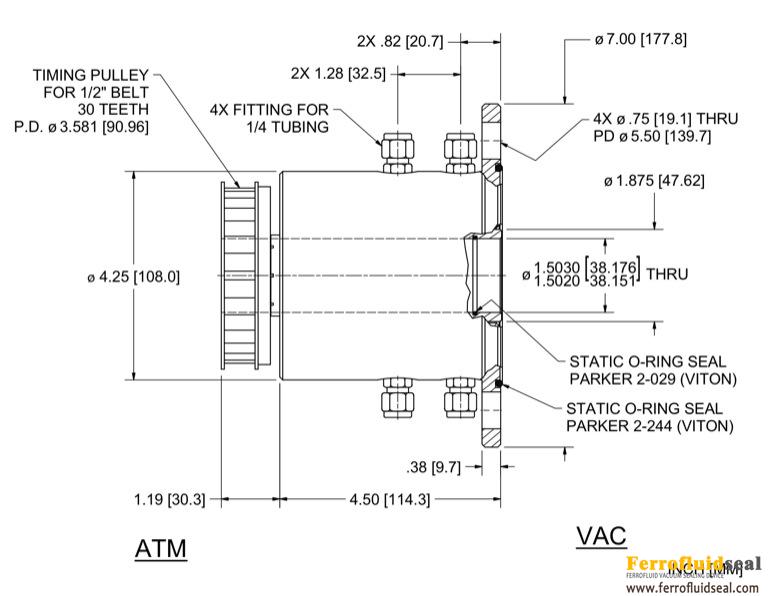

Ferrotec Part Number 107424 Dimension Specification Drawing
Specifications for Ferrotec Part Number 107424
| Shaft | Hollow Shaft |
| Shaft Support: |
Cantilevered (both on atm side) |
| Ferrofluid | Reactive Gas |
| Mounting | Ferro Flange |
| Features: |
Water-cooled |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 1.5025 in |
| Shaft extension (Vac) | 0.03 in |
| Overall length | 5.71 in |
| Housing overall length | 4.5 in |
| Housing diameter | 4.25 in |
| Body length | 4.12 in |
| Recommended shaft diameter | 1.5 |
| Flange diameter | 7 in |
| Flange thickness | 0.38 in |
| Fitting locations | .750, 4x on 5.500 bc in |
| Face seal O-ring | 2-244 |
