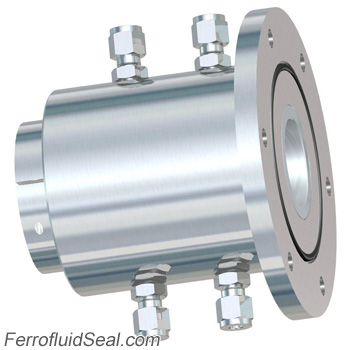

Ferrotec’s Ferrofluidic seal Feedthrough Model HFL-038-MN (part number 133594)

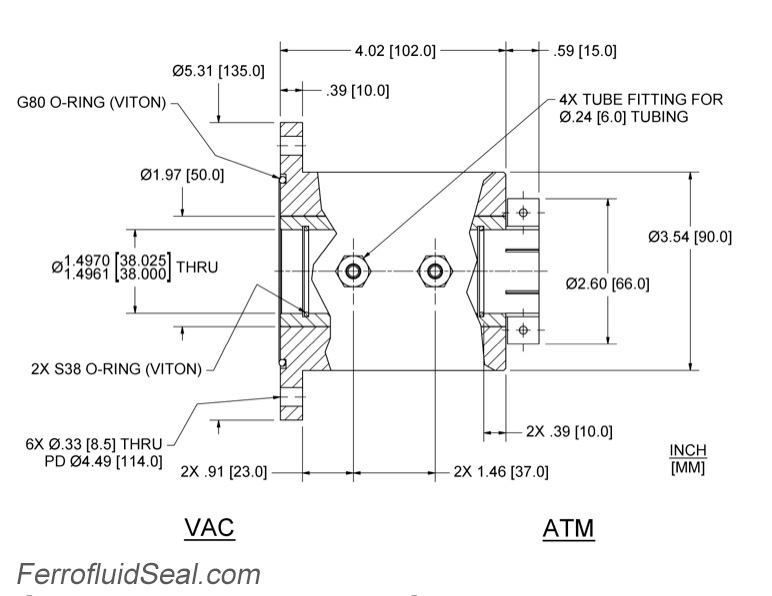

The HFL-038-MN vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.
Specifications for Ferrotec Part Number 133594
| Shaft | Hollow Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Ferro Flange |
| Features: |
Water-cooled Shaft Clamp |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 38 (+.025/-0) mm |
| Overall length | 117 mm |
| Housing overall length | 92 mm |
| Housing diameter | 90 mm |
| Body length | 92 mm |
| Clamp diameter | 66 mm |
| Clamp thickness | 15 mm |
| Recommended shaft diameter | 37.98 |
| Flange diameter | 135 mm |
| Flange thickness | 10 mm |
| Fitting locations | 33, 37 mm |
| Mounting holes | 8.5, 6x on 114.0 bc mm |
| Flange Type | Flange |
