Ferrotec Feedthrough Model HS-2000-SLFBC Ferrofluidic Part Number 103361

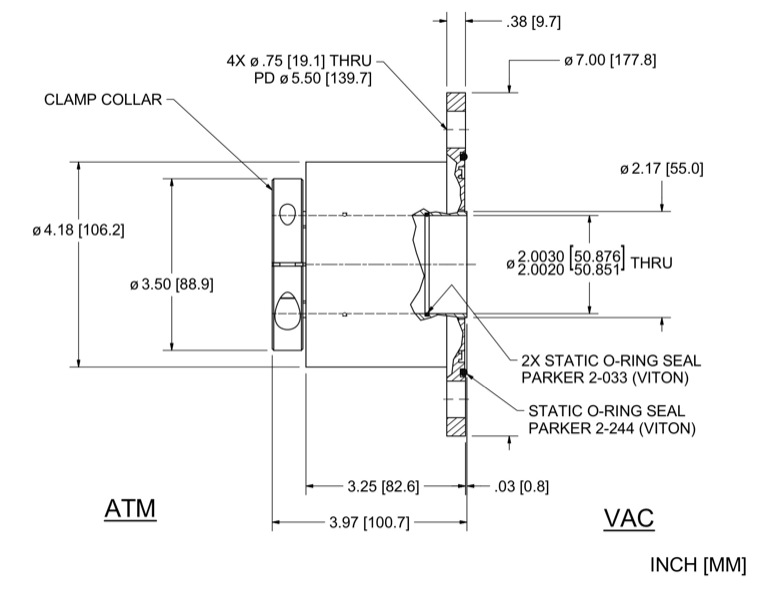

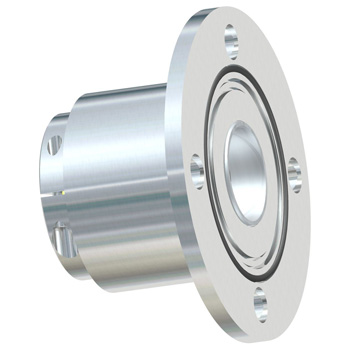

The HS-2000-SLFBC vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.
Specifications for Ferrotec Part Number 103361
| Shaft | Hollow Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Ferro Flange |
| Features: |
Shaft Clamp |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 2.0025 in |
| Shaft extension (Vac) | 0.03 in |
| Overall length | 3.966 in |
| Housing overall length | 3.25 in |
| Housing diameter | 4.18 in |
| Body length | 2.87 in |
| Clamp diameter | 3.5 in |
| Clamp thickness | 0.625 in |
| Recommended shaft diameter | 2 |
| Flange diameter | 7 in |
| Flange thickness | 0.38 in |
| Mounting holes | 0.750, 4x on 5.500 bc in |
| Face seal O-ring | 2-244 |
