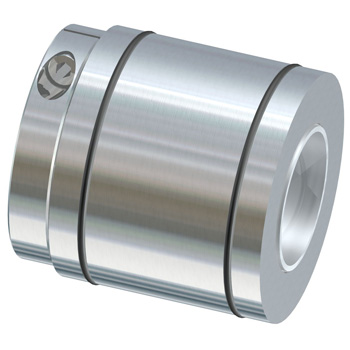

Ferrotec Feedthrough Model HS-2000-SLXSC Ferrofluidic Part Number 103321

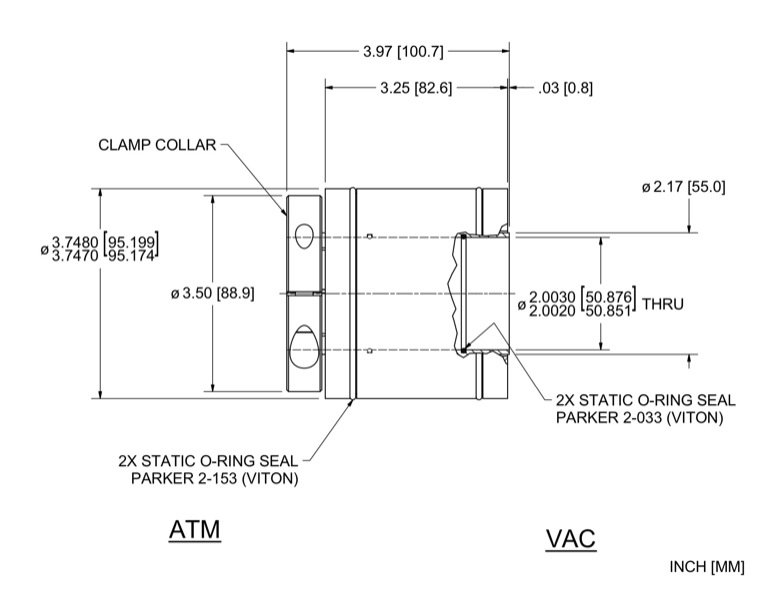

The HS-2000-SLXSC vacuum rotary feedthrough features a Hollow shaft with Cartridge Seal mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.
Specifications for Ferrotec Part Number 103321
| Shaft | Hollow Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Cartridge Seal |
| Features: |
Shaft Clamp |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 2.0025 in |
| Shaft extension (Vac) | 0.03 in |
| Overall length | 3.966 in |
| Housing overall length | 3.25 in |
| Housing diameter | 3.7475 in |
| Body length | 3.25 in |
| Clamp diameter | 3.5 in |
| Clamp thickness | 0.625 in |
| Recommended shaft diameter | 2 |
| Recommended mounting bore | 3.75 (+.002/-0) in |
