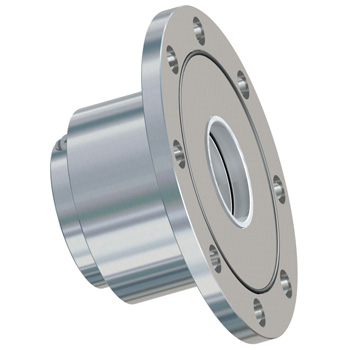

Ferrotec Feedthrough Model HS-3000-SLFEC Ferrofluidic Part Number 133218

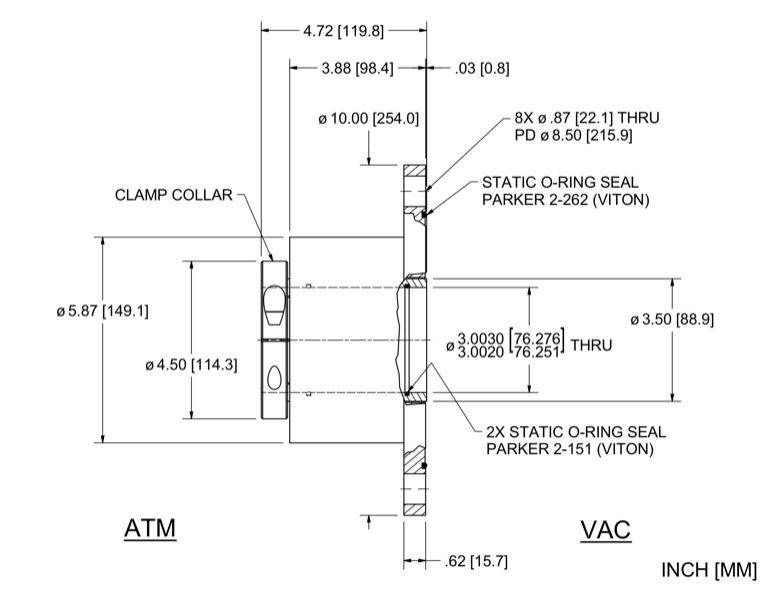

The HS-3000-SLFEC vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.
Specifications for Ferrotec Part Number 133218
| Shaft | Hollow Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Ferro Flange |
| Features: |
Shaft Clamp |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 3.0025 in |
| Shaft extension (Vac) | 0.03 in |
| Overall length | 4.717 in |
| Housing overall length | 3.875 in |
| Housing diameter | 5.87 in |
| Body length | 3.225 in |
| Clamp diameter | 4.5 in |
| Clamp thickness | 0.75 in |
| Recommended shaft diameter | 3 |
| Flange diameter | 10 in |
| Flange thickness | 0.62 in |
| Mounting holes | .87, 8x on 8.50 bc in |
| Face seal O-ring | 2-262 |
