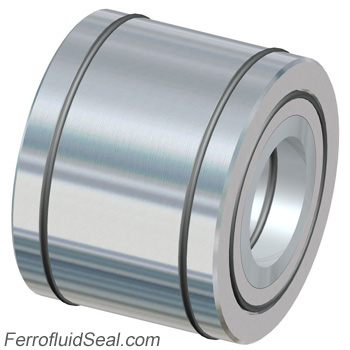

Ferrotec’s Ferrofluidic seal Feedthrough Model HTL-038-NN (part number 133556)

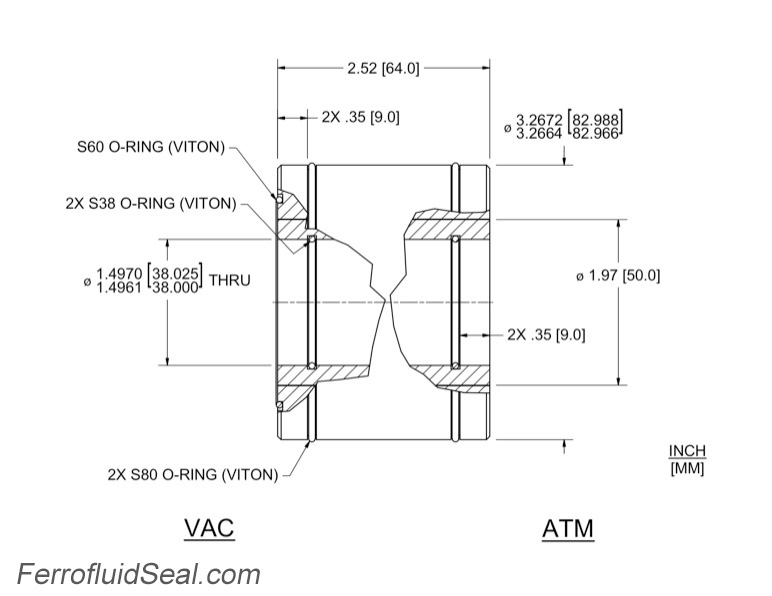

The HTL-038-NN vacuum rotary feedthrough features a Hollow shaft with Cartridge Seal mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.
Specifications for Ferrotec Part Number 133556
| Shaft | Hollow Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Cartridge Seal |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 38 (+.025/-0) mm |
| Overall length | 64 mm |
| Housing overall length | 64 mm |
| Housing diameter | 83 (-.012/-.034) mm |
| Body length | 64 mm |
| Recommended shaft diameter | 37.98 |
| Recommended mounting bore | 83 (+.02/0) mm |
| Flange Type | Cartridge |
