Ferrotec Feedthrough Model SNL-010-NN Ferrofluidic seal part number 121503
The SNL-010-NN vacuum rotary feedthrough features a Solid shaft with Nut Mounted (threaded body) mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

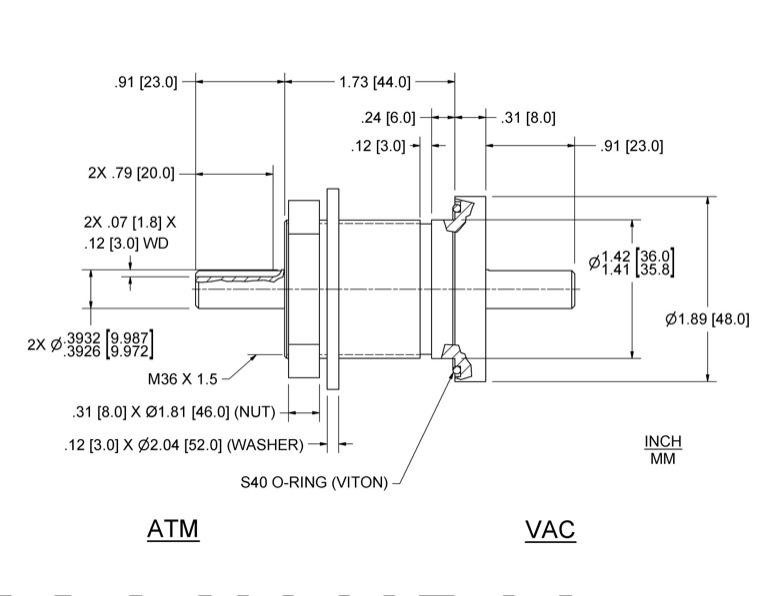

Ferrotec Part Number 121503 Dimension Specification Drawing
Specifications for Ferrotec Part Number 121503
| Shaft | Solid Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting |
Nut Mounted (threaded body) Mounting Nut and Washer Included |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 9.979 mm |
| Shaft termination | 3.012 w. x 1.85 d x 20.20 l. (keyway) mm |
| Shaft extension (Vac) | 23 mm |
| Overall length | 98 mm |
| Housing overall length | 52 mm |
| Body length | 44 mm |
| Thread diameter | 36 mm |
| Thread pitch [tps] or [mm/thd] (metric) | 1.5 [mm/thd] |
| Thread length | 42 mm |
| Recommended mounting bore | 36.5 |
| Flange diameter | 48 mm |
| Flange thickness | 8 mm |
