The SS-375-SLCB vacuum rotary feedthrough features a Solid shaft with ConFlat Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

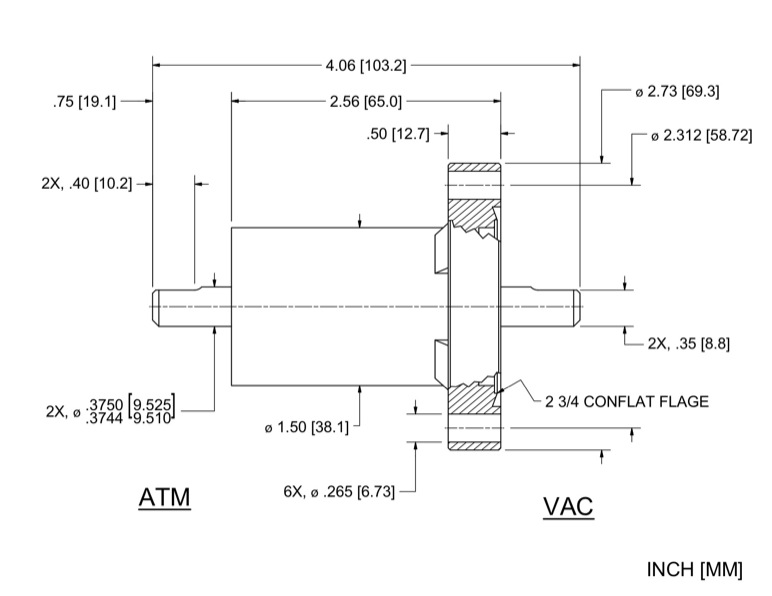

Ferrotec Part Number 103154 Dimension Specification Drawing
Specifications for Ferrotec Part Number 103154
| Shaft | Solid Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | ConFlat Flange |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 0.3747 in |
| Shaft termination | .03d x .04 L (flat) in |
| Shaft extension (Vac) | 0.753 in |
| Overall length | 4.063 in |
| Housing overall length | 2.56 in |
| Housing diameter | 1.5 in |
| Body length | 2.06 in |
| Flange diameter | 2.73 in |
| Flange thickness | 0.5 in |
| Mounting holes | .265, 6x on 2.312 in |
| Flange Type | ConFlat Flange |
