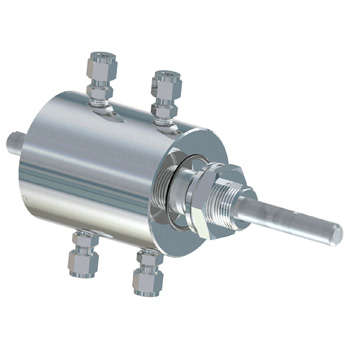

The SS-500-SLAEW vacuum rotary feedthrough features a Solid shaft with Nose (threaded) mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

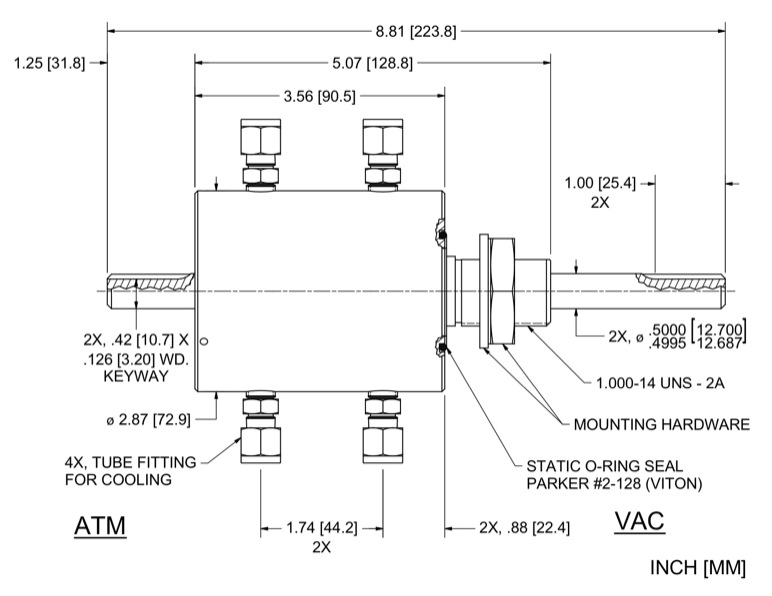

Ferrotec Part Number 103204 Dimension Specification Drawing
Specifications for Ferrotec Part Number 103204
| Shaft | Solid Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting |
Nose (threaded) Mounting Nut and Washer Included |
| Features: |
Water-cooled |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 0.4998 (+.0002/-.0003) in |
| Shaft termination | 0.126w x 0.78d x 1.0L (keyway) in |
| Shaft extension (Vac) | 2.49 in |
| Overall length | 8.812 in |
| Housing overall length | 5.072 in |
| Housing diameter | 2.87 in |
| Body length | 3.562 in |
| Thread diameter | 1 in |
| Thread pitch [tps] or [mm/thd] (metric) | 14 [tps] |
| Thread length | 1.36 in |
| Recommended mounting bore | 1.025 |
| Fitting locations | 0.881, 1.742 in |
| Face seal O-ring | 2-128 |
