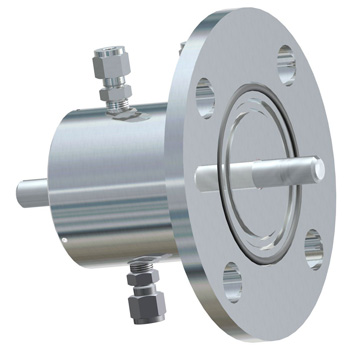

The SS-500-SLFAW vacuum rotary feedthrough features a Solid shaft with Ferro Flange mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

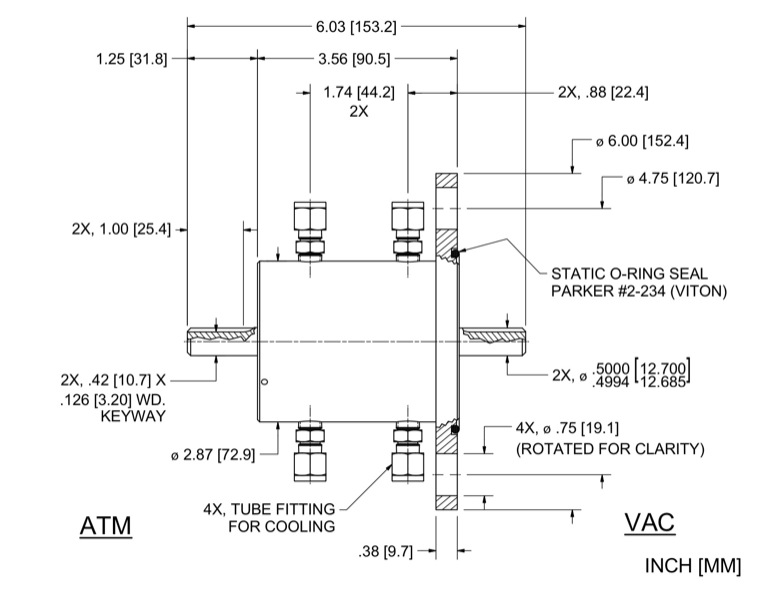

Ferrotec Part Number 103182 Dimension Specification Drawing
Specifications for Ferrotec Part Number 103182
| Shaft | Solid Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Ferro Flange |
| Features: |
Water-cooled |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 0.4997 in |
| Shaft termination | .126w x 0.78d x 1.0L.(keyway) in |
| Shaft extension (Vac) | 1.218 in |
| Overall length | 6.03 in |
| Housing overall length | 3.562 in |
| Housing diameter | 2.87 in |
| Body length | 3.182 in |
| Flange diameter | 6 in |
| Flange thickness | 0.38 in |
| Fitting locations | .881, 1.742 in |
| Mounting holes | .750, 4x on 4.750 b.c. in |
| Face seal O-ring | 2-234 |
