Ferrotec Feedthrough Model HS-1500-SLXSC Ferrofluidic Part Number 103320

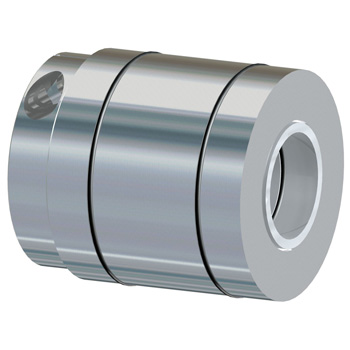

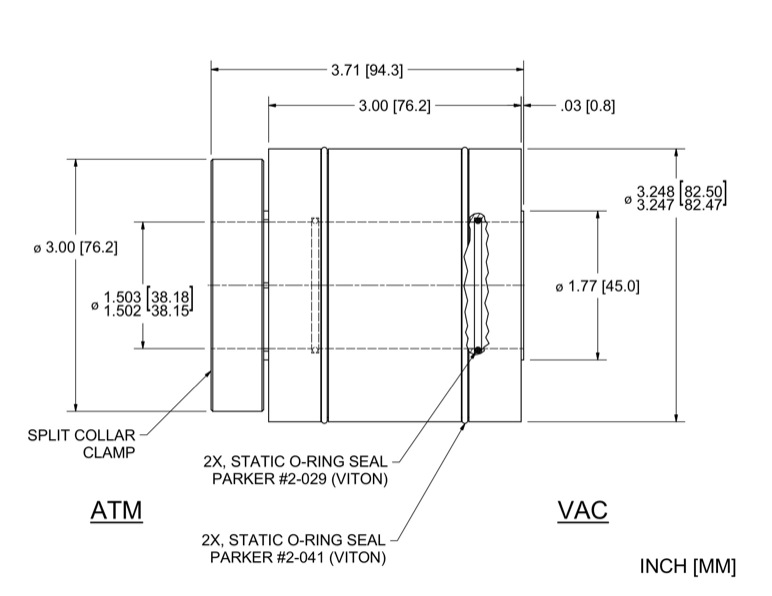

The HS-1500-SLXSC vacuum rotary feedthrough features a Hollow shaft with Cartridge Seal mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.
Specifications for Ferrotec Part Number 103320
| Shaft | Hollow Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Cartridge Seal |
| Features: |
Shaft Clamp |
|
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 1.5025 in |
| Shaft extension (Vac) | 0.03 in |
| Overall length | 3.714 in |
| Housing overall length | 3 in |
| Housing diameter | 3.2475 in |
| Body length | 3 in |
| Clamp diameter | 3 in |
| Clamp thickness | 0.625 in |
| Recommended shaft diameter | 1.5 |
| Recommended mounting bore | 3.25 (+.002/-0) in |
